# PEREpigenomics
## Profile Explorer of Roadmap Epigenomics data
<html>
 <div style='float:left'></div>
 <hr color='#EB811B' size=1px width=100%>
</html>
.pull-left[

[@G_Devailly](https://twitter.com/G_Devailly)
Guillaume Devailly
useR!2019
2019/07/09
]
.pull-right[

![:img_scale 80%](img/genphyse_inra_logo.png)
]

---
layout: true
class: font180
background-image: url("img/genphyse_inra_logo.png")
background-position: 0% 100%
background-size: 15%

---

# One genome, many cell types

.pull-left[
![](img/bioRender.png)
]
.pull-right[
.center[
Differential gene expression =
cellular environment + epigenetics
]
]

---

# Epigenetics data

.pull-left[
Many existing datasets and databases.
## Dataset: ![](img/RoadmapEpigenomics.png)
- RNA-seq
- DNAse1
- WGBS,
- 10 different histone methylations
- 17 different histone acetylations

in 33 human cell lines & tissues, uniformly processed.
]

.pull-right[
![](img/main_illustration.png)
]

---

# What to do with big dataset?

.pull-left[
Build a data portal:
]

.pull-right[
![:img_scale 80%](img/data_portal_roadmap.png)
]

---

# What to do with big dataset?

Link data to genome browser:
.center[![:img_scale 65%](img/browser_2.png)]

---

# What to do with big dataset?

Machine learning:
![](img/ml_re.png)

.right[.font60[Kundaje, Meuleman, Ernst, Bilenky et al., 2015, [10.1038/nature14248](https://doi.org/10.1038/nature14248)]]

---

# Objectives

.pull-left[
- Visualisation of marks, sorted by **gene** transcription level:
  - at TSS (gene start)
  - at TTS (gene end)
- Visualisation of marks at **middle exons** starts, sorted by:
  - transcription level
  - inclusion ratio
- For **all** genes/exons in **each** cell type.
- For **each** gene/exon in **all** cell types.
]

.pull-right[
![:img_scale 85%](img/h3k4me3_SI.png)
]

---
class: inverse

# H3K4me3, TSS, small intestine

.center[
![:img_scale 47%](img/h3k4me3_SI.png)
]

---

# Different gene types, different associations
.pull-left[
lincRNA
![:img_scale 75%](img/h3k4me3_SI_lincRNA.png)
]
.pull-right[
processed pseudogenes
![:img_scale 75%](img/h3k4me3_SI_propseudo.png)
]

---
# Position of signal matters
.pull-left[

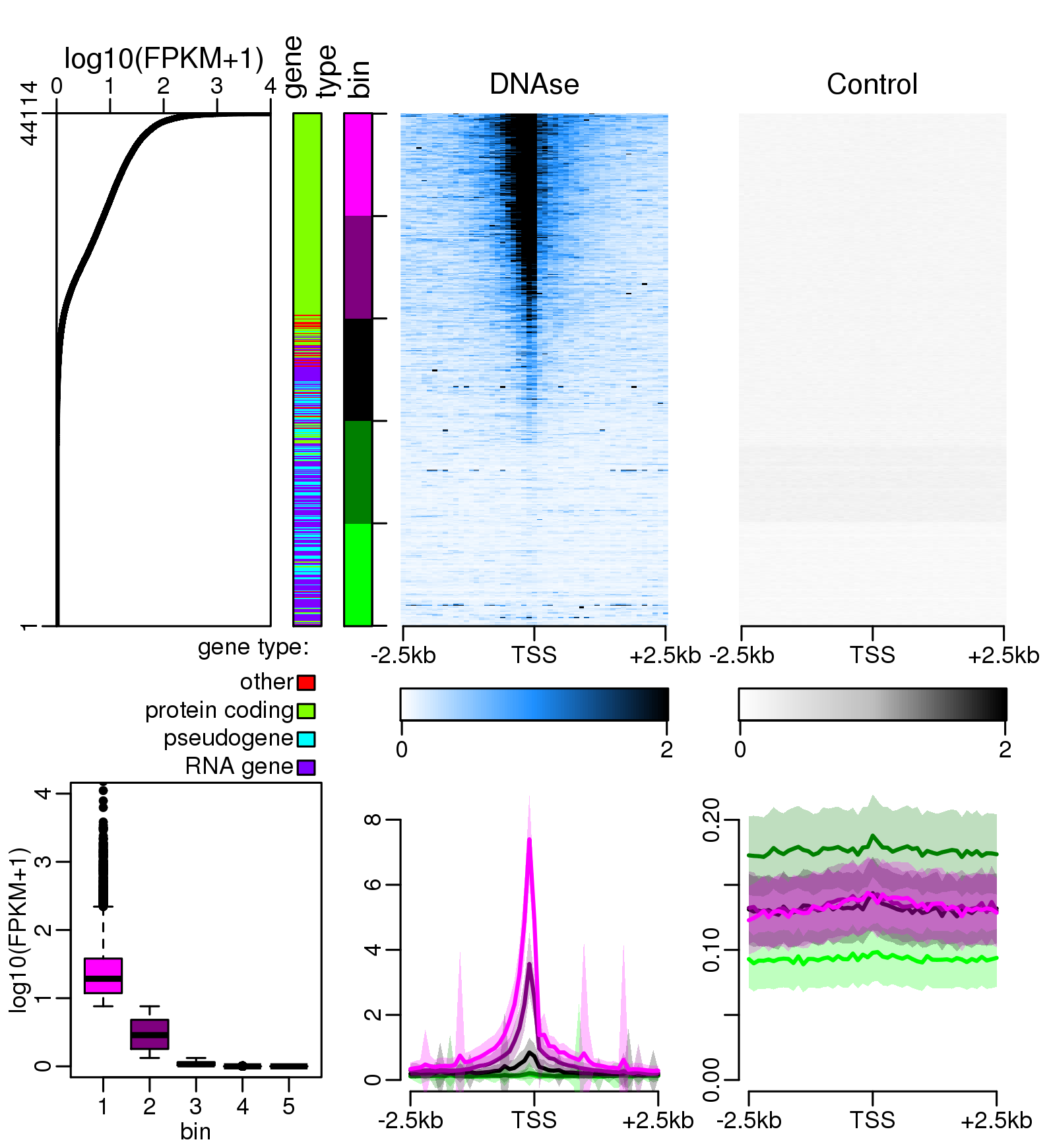

DNAse 1 (accessible chromatin)
![:img_scale 75%](img/DNAse_SI.png)
]
.pull-right[
H3K27ac
![:img_scale 75%](img/h3k27ac_SI.png)
]

---
class: inverse, center

# Exonic mark: H3K36me3, fetal large intestine

![:img_scale 45%](img/H3K36me3.png)

---
class: font180

# DNA methylation: ratio *and* density

![:img_scale 100%](img/dname_ex1.png)

---
class: center
# Exonic DNA methylation

WGBS, pancreas
![:img_scale 60%](img/wgbs_panc_E098_all.png)

---

# Cell by cell *vs* gene by gene

.pull-left[
WGBS, adult liver
![](img/wgbs_TSS_gene_FPKM_E066_all.png)
]

.pull-right[
<div id="htmlwidget-faab32faf4834b7a179d" style="width:504px;height:504px;" class="plotly html-widget"></div>
<script type="application/json" data-for="htmlwidget-faab32faf4834b7a179d">{"x":{"data":[{"x":[0.00316054840450075,0.0104448345115661,0.0177291206186314,0.0250134067256967,0.032297692832762,0.0395819789398274,0.0468662650468927,0.054150551153958,0.0614348372610233,0.0687191233680886,0.076003409475154,0.0832876955822193,0.0905719816892846,0.0978562677963499,0.105140553903415,0.112424840010481,0.119709126117546,0.126993412224611,0.134277698331677,0.141561984438742,0.148846270545807,0.156130556652872,0.163414842759938,0.170699128867003,0.177983414974068,0.185267701081134,0.192551987188199,0.199836273295264,0.20712055940233,0.214404845509395,0.22168913161646,0.228973417723526,0.236257703830591,0.243541989937656,0.250826276044722,0.258110562151787,0.265394848258852,0.272679134365918,0.279963420472983,0.287247706580048,0.294531992687114,0.301816278794179,0.309100564901244,0.31638485100831,0.323669137115375,0.33095342322244,0.338237709329505,0.345521995436571,0.352806281543636,0.360090567650701,0.367374853757767,0.374659139864832,0.381943425971897,0.389227712078963,0.396511998186028,0.403796284293093,0.411080570400159,0.418364856507224,0.425649142614289,0.432933428721355,0.44021771482842,0.447502000935485,0.454786287042551,0.462070573149616,0.469354859256681,0.476639145363747,0.483923431470812,0.491207717577877,0.498492003684943,0.505776289792008,0.513060575899073,0.520344862006138,0.527629148113204,0.534913434220269,0.542197720327334,0.5494820064344,0.556766292541465,0.56405057864853,0.571334864755596,0.578619150862661],"y":[1.17193863545775,1.15216450566716,1.13239037587658,1.11261624608599,1.0928421162954,1.07306798650482,1.05329385671423,1.03351972692364,1.01374559713306,0.993971467342469,0.974197337551882,0.954423207761295,0.934649077970709,0.914874948180122,0.895100818389535,0.875326688598948,0.855552558808362,0.835778429017775,0.816004299227188,0.796230169436601,0.776456039646015,0.756681909855428,0.736907780064841,0.717133650274254,0.697359520483668,0.677585390693081,0.657811260902494,0.638037131111907,0.618263001321321,0.598488871530734,0.578714741740147,0.55894061194956,0.539166482158973,0.519392352368387,0.4996182225778,0.479844092787213,0.460069962996626,0.44029583320604,0.420521703415453,0.400747573624866,0.380973443834279,0.361199314043693,0.341425184253106,0.321651054462519,0.301876924671933,0.282102794881346,0.262328665090759,0.242554535300172,0.222780405509585,0.203006275718999,0.183232145928412,0.163458016137825,0.143683886347238,0.123909756556652,0.104135626766065,0.084361496975478,0.0645873671848916,0.0448132373943047,0.025039107603718,0.00526497781313107,-0.0145091519774556,-0.0342832817680425,-0.054057411558629,-0.0738315413492159,-0.0936056711398026,-0.113379800930389,-0.133153930720976,-0.152928060511563,-0.17270219030215,-0.192476320092736,-0.212250449883323,-0.23202457967391,-0.251798709464497,-0.271572839255084,-0.29134696904567,-0.311121098836257,-0.330895228626844,-0.35066935841743,-0.370443488208017,-0.390217617998604],"text":"","type":"scatter","mode":"lines","name":"fitted values","line":{"width":3.77952755905512,"color":"rgba(51,102,255,1)","dash":"dot"},"hoveron":"points","showlegend":false,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[0.00316054840450075],"y":[1.94825154256294],"text":"BLD.MOB.CD34.PC.F","type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(248,118,109,1)","opacity":1,"size":5.66929133858268,"symbol":"circle","line":{"width":1.88976377952756,"color":"rgba(248,118,109,1)"}},"hoveron":"points","name":"BLD.MOB.CD34.PC.F","legendgroup":"BLD.MOB.CD34.PC.F","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[0.578619150862661],"y":[0.0326187608507199],"text":"BRN.CRTX.DR.NRSPHR","type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(240,126,77,1)","opacity":1,"size":5.66929133858268,"symbol":"circle","line":{"width":1.88976377952756,"color":"rgba(240,126,77,1)"}},"hoveron":"points","name":"BRN.CRTX.DR.NRSPHR","legendgroup":"BRN.CRTX.DR.NRSPHR","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[0.474270755712551],"y":[0.00817418400642635],"text":"BRN.GANGEM.DR.NRSPHR","type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(231,134,25,1)","opacity":1,"size":5.66929133858268,"symbol":"circle","line":{"width":1.88976377952756,"color":"rgba(231,134,25,1)"}},"hoveron":"points","name":"BRN.GANGEM.DR.NRSPHR","legendgroup":"BRN.GANGEM.DR.NRSPHR","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[0.295858828821127],"y":[0.617838747717003],"text":"BRN.GRM.MTRX","type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(219,142,0,1)","opacity":1,"size":5.66929133858268,"symbol":"circle","line":{"width":1.88976377952756,"color":"rgba(219,142,0,1)"}},"hoveron":"points","name":"BRN.GRM.MTRX","legendgroup":"BRN.GRM.MTRX","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[0.252406406714177],"y":[0.902002891350729],"text":"BRN.HIPP.MID","type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(206,149,0,1)","opacity":1,"size":5.66929133858268,"symbol":"circle","line":{"width":1.88976377952756,"color":"rgba(206,149,0,1)"}},"hoveron":"points","name":"BRN.HIPP.MID","legendgroup":"BRN.HIPP.MID","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[0.255905732109217],"y":[0.166430113843283],"text":"ESC.4STAR","type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(191,156,0,1)","opacity":1,"size":5.66929133858268,"symbol":"circle","line":{"width":1.88976377952756,"color":"rgba(191,156,0,1)"}},"hoveron":"points","name":"ESC.4STAR","legendgroup":"ESC.4STAR","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[0.345252615010015],"y":[0.178976947293169],"text":"ESC.H1","type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(174,162,0,1)","opacity":1,"size":5.66929133858268,"symbol":"circle","line":{"width":1.88976377952756,"color":"rgba(174,162,0,1)"}},"hoveron":"points","name":"ESC.H1","legendgroup":"ESC.H1","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[0.282123940170781],"y":[0.17868923977559],"text":"ESC.HUES64","type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(154,168,0,1)","opacity":1,"size":5.66929133858268,"symbol":"circle","line":{"width":1.88976377952756,"color":"rgba(154,168,0,1)"}},"hoveron":"points","name":"ESC.HUES64","legendgroup":"ESC.HUES64","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[0.338292277702198],"y":[0.252124552505644],"text":"ESDR.CD184.ENDO","type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(130,173,0,1)","opacity":1,"size":5.66929133858268,"symbol":"circle","line":{"width":1.88976377952756,"color":"rgba(130,173,0,1)"}},"hoveron":"points","name":"ESDR.CD184.ENDO","legendgroup":"ESDR.CD184.ENDO","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[0.327857465708273],"y":[0.225567713439471],"text":"ESDR.CD56.ECTO","type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(100,178,0,1)","opacity":1,"size":5.66929133858268,"symbol":"circle","line":{"width":1.88976377952756,"color":"rgba(100,178,0,1)"}},"hoveron":"points","name":"ESDR.CD56.ECTO","legendgroup":"ESDR.CD56.ECTO","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[0.243667846383384],"y":[0.960090067904919],"text":"ESDR.CD56.MESO","type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(50,182,0,1)","opacity":1,"size":5.66929133858268,"symbol":"circle","line":{"width":1.88976377952756,"color":"rgba(50,182,0,1)"}},"hoveron":"points","name":"ESDR.CD56.MESO","legendgroup":"ESDR.CD56.MESO","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[0.21999183310084],"y":[0.185825359612962],"text":"ESDR.H1.BMP4.MESO","type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(0,186,56,1)","opacity":1,"size":5.66929133858268,"symbol":"circle","line":{"width":1.88976377952756,"color":"rgba(0,186,56,1)"}},"hoveron":"points","name":"ESDR.H1.BMP4.MESO","legendgroup":"ESDR.H1.BMP4.MESO","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[0.299110187814634],"y":[0.0429690733931801],"text":"ESDR.H1.BMP4.TROP","type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(0,189,92,1)","opacity":1,"size":5.66929133858268,"symbol":"circle","line":{"width":1.88976377952756,"color":"rgba(0,189,92,1)"}},"hoveron":"points","name":"ESDR.H1.BMP4.TROP","legendgroup":"ESDR.H1.BMP4.TROP","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[0.203003974305245],"y":[0.209515014542631],"text":"ESDR.H1.MSC","type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(0,191,120,1)","opacity":1,"size":5.66929133858268,"symbol":"circle","line":{"width":1.88976377952756,"color":"rgba(0,191,120,1)"}},"hoveron":"points","name":"ESDR.H1.MSC","legendgroup":"ESDR.H1.MSC","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[0.364600861195034],"y":[0.298853076409707],"text":"ESDR.H1.NEUR.PROG","type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(0,192,145,1)","opacity":1,"size":5.66929133858268,"symbol":"circle","line":{"width":1.88976377952756,"color":"rgba(0,192,145,1)"}},"hoveron":"points","name":"ESDR.H1.NEUR.PROG","legendgroup":"ESDR.H1.NEUR.PROG","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[0.0833976962496815],"y":[1.10731174549067],"text":"GI.CLN.SIG","type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(0,193,167,1)","opacity":1,"size":5.66929133858268,"symbol":"circle","line":{"width":1.88976377952756,"color":"rgba(0,193,167,1)"}},"hoveron":"points","name":"GI.CLN.SIG","legendgroup":"GI.CLN.SIG","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[0.119834724410984],"y":[0.843108141999607],"text":"GI.ESO","type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(0,192,187,1)","opacity":1,"size":5.66929133858268,"symbol":"circle","line":{"width":1.88976377952756,"color":"rgba(0,192,187,1)"}},"hoveron":"points","name":"GI.ESO","legendgroup":"GI.ESO","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[0.122400001604626],"y":[0.483444648098535],"text":"GI.L.INT.FET","type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(0,190,205,1)","opacity":1,"size":5.66929133858268,"symbol":"circle","line":{"width":1.88976377952756,"color":"rgba(0,190,205,1)"}},"hoveron":"points","name":"GI.L.INT.FET","legendgroup":"GI.L.INT.FET","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[0.0934185678327754],"y":[0.937066312017428],"text":"GI.S.INT","type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(0,186,222,1)","opacity":1,"size":5.66929133858268,"symbol":"circle","line":{"width":1.88976377952756,"color":"rgba(0,186,222,1)"}},"hoveron":"points","name":"GI.S.INT","legendgroup":"GI.S.INT","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[0.332589287168289],"y":[0.374014740291912],"text":"GI.S.INT.FET","type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(0,181,237,1)","opacity":1,"size":5.66929133858268,"symbol":"circle","line":{"width":1.88976377952756,"color":"rgba(0,181,237,1)"}},"hoveron":"points","name":"GI.S.INT.FET","legendgroup":"GI.S.INT.FET","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[0.0900075184297048],"y":[0.872389388417821],"text":"GI.STMC.GAST","type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(0,174,249,1)","opacity":1,"size":5.66929133858268,"symbol":"circle","line":{"width":1.88976377952756,"color":"rgba(0,174,249,1)"}},"hoveron":"points","name":"GI.STMC.GAST","legendgroup":"GI.STMC.GAST","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[0.0526569056754552],"y":[0.898560644939712],"text":"HRT.ATR.R","type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(0,166,255,1)","opacity":1,"size":5.66929133858268,"symbol":"circle","line":{"width":1.88976377952756,"color":"rgba(0,166,255,1)"}},"hoveron":"points","name":"HRT.ATR.R","legendgroup":"HRT.ATR.R","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[0.0682720620850734],"y":[0.870930358348696],"text":"HRT.VENT.L","type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(97,156,255,1)","opacity":1,"size":5.66929133858268,"symbol":"circle","line":{"width":1.88976377952756,"color":"rgba(97,156,255,1)"}},"hoveron":"points","name":"HRT.VENT.L","legendgroup":"HRT.VENT.L","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[0.053951127197944],"y":[1.11968469182405],"text":"HRT.VNT.R","type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(145,145,255,1)","opacity":1,"size":5.66929133858268,"symbol":"circle","line":{"width":1.88976377952756,"color":"rgba(145,145,255,1)"}},"hoveron":"points","name":"HRT.VNT.R","legendgroup":"HRT.VNT.R","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[0.136368603048947],"y":[0.357553719743082],"text":"LIV.ADLT","type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(179,133,255,1)","opacity":1,"size":5.66929133858268,"symbol":"circle","line":{"width":1.88976377952756,"color":"rgba(179,133,255,1)"}},"hoveron":"points","name":"LIV.ADLT","legendgroup":"LIV.ADLT","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[0.0707286689083505],"y":[1.23157152552842],"text":"LNG","type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(205,121,255,1)","opacity":1,"size":5.66929133858268,"symbol":"circle","line":{"width":1.88976377952756,"color":"rgba(205,121,255,1)"}},"hoveron":"points","name":"LNG","legendgroup":"LNG","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[0.169592869496849],"y":[0.290479813330673],"text":"MUS.PSOAS","type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(225,111,248,1)","opacity":1,"size":5.66929133858268,"symbol":"circle","line":{"width":1.88976377952756,"color":"rgba(225,111,248,1)"}},"hoveron":"points","name":"MUS.PSOAS","legendgroup":"MUS.PSOAS","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[0.110774205593195],"y":[0.778006461423508],"text":"OVRY","type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(239,103,235,1)","opacity":1,"size":5.66929133858268,"symbol":"circle","line":{"width":1.88976377952756,"color":"rgba(239,103,235,1)"}},"hoveron":"points","name":"OVRY","legendgroup":"OVRY","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[0.18550429235565],"y":[0.757320096546672],"text":"PANC","type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(249,98,219,1)","opacity":1,"size":5.66929133858268,"symbol":"circle","line":{"width":1.88976377952756,"color":"rgba(249,98,219,1)"}},"hoveron":"points","name":"PANC","legendgroup":"PANC","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[0.0927282912597219],"y":[0.33665982345442],"text":"SKIN.PEN.FRSK.KER.03","type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(255,97,202,1)","opacity":1,"size":5.66929133858268,"symbol":"circle","line":{"width":1.88976377952756,"color":"rgba(255,97,202,1)"}},"hoveron":"points","name":"SKIN.PEN.FRSK.KER.03","legendgroup":"SKIN.PEN.FRSK.KER.03","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[0.0278424927774741],"y":[1.92847778688235],"text":"SPLN","type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(255,99,182,1)","opacity":1,"size":5.66929133858268,"symbol":"circle","line":{"width":1.88976377952756,"color":"rgba(255,99,182,1)"}},"hoveron":"points","name":"SPLN","legendgroup":"SPLN","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[0.0475566875160588],"y":[1.10917342142547],"text":"THYM","type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(255,104,160,1)","opacity":1,"size":5.66929133858268,"symbol":"circle","line":{"width":1.88976377952756,"color":"rgba(255,104,160,1)"}},"hoveron":"points","name":"THYM","legendgroup":"THYM","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[0.0552493038253077],"y":[1.08795878946073],"text":"VAS.AOR","type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(253,111,136,1)","opacity":1,"size":5.66929133858268,"symbol":"circle","line":{"width":1.88976377952756,"color":"rgba(253,111,136,1)"}},"hoveron":"points","name":"VAS.AOR","legendgroup":"VAS.AOR","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[0.5,0.5],"y":[1.85,1.65],"text":["slope: -2.71","R²: 0.56"],"hovertext":["",""],"textfont":{"size":14.6645669291339,"color":"rgba(0,0,0,1)"},"type":"scatter","mode":"text","hoveron":"points","showlegend":false,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null}],"layout":{"margin":{"t":40.8401826484018,"r":7.30593607305936,"b":37.2602739726027,"l":48.9497716894977},"plot_bgcolor":"rgba(255,255,255,1)","paper_bgcolor":"rgba(255,255,255,1)","font":{"color":"rgba(0,0,0,1)","family":"","size":14.6118721461187},"title":{"text":"LYL1 (ENSG00000104903)","font":{"color":"rgba(0,0,0,1)","family":"","size":17.5342465753425},"x":0,"xref":"paper"},"xaxis":{"domain":[0,1],"automargin":true,"type":"linear","autorange":false,"range":[-0.0256123817184073,0.607392080985569],"tickmode":"array","ticktext":["0.0","0.2","0.4","0.6"],"tickvals":[-3.46944695195361e-18,0.2,0.4,0.6],"categoryorder":"array","categoryarray":["0.0","0.2","0.4","0.6"],"nticks":null,"ticks":"outside","tickcolor":"rgba(51,51,51,1)","ticklen":3.65296803652968,"tickwidth":0.66417600664176,"showticklabels":true,"tickfont":{"color":"rgba(77,77,77,1)","family":"","size":11.689497716895},"tickangle":-0,"showline":false,"linecolor":null,"linewidth":0,"showgrid":true,"gridcolor":"rgba(235,235,235,1)","gridwidth":0.66417600664176,"zeroline":false,"anchor":"y","title":{"text":"mean mCpG/CpG ratio at TSS +/-500bp","font":{"color":"rgba(0,0,0,1)","family":"","size":14.6118721461187}},"hoverformat":".2f"},"yaxis":{"domain":[0,1],"automargin":true,"type":"linear","autorange":false,"range":[-0.507141076026681,2.06517500059102],"tickmode":"array","ticktext":["-0.5","0.0","0.5","1.0","1.5","2.0"],"tickvals":[-0.5,0,0.5,1,1.5,2],"categoryorder":"array","categoryarray":["-0.5","0.0","0.5","1.0","1.5","2.0"],"nticks":null,"ticks":"outside","tickcolor":"rgba(51,51,51,1)","ticklen":3.65296803652968,"tickwidth":0.66417600664176,"showticklabels":true,"tickfont":{"color":"rgba(77,77,77,1)","family":"","size":11.689497716895},"tickangle":-0,"showline":false,"linecolor":null,"linewidth":0,"showgrid":true,"gridcolor":"rgba(235,235,235,1)","gridwidth":0.66417600664176,"zeroline":false,"anchor":"x","title":{"text":"log10(FPKM+1)","font":{"color":"rgba(0,0,0,1)","family":"","size":14.6118721461187}},"hoverformat":".2f"},"shapes":[{"type":"rect","fillcolor":"transparent","line":{"color":"rgba(51,51,51,1)","width":0.66417600664176,"linetype":"solid"},"yref":"paper","xref":"paper","x0":0,"x1":1,"y0":0,"y1":1}],"showlegend":false,"legend":{"bgcolor":"rgba(255,255,255,1)","bordercolor":"transparent","borderwidth":1.88976377952756,"font":{"color":"rgba(0,0,0,1)","family":"","size":11.689497716895}},"hovermode":"closest","barmode":"relative"},"config":{"doubleClick":"reset","showSendToCloud":false},"source":"A","attrs":{"5e9377136555":{"x":{},"y":{},"type":"scatter"},"5e936189340b":{"text":{},"colour":{},"x":{},"y":{}},"5e9314fbe0a2":{"x":{},"y":{}}},"cur_data":"5e9377136555","visdat":{"5e9377136555":["function (y) ","x"],"5e936189340b":["function (y) ","x"],"5e9314fbe0a2":["function (y) ","x"]},"highlight":{"on":"plotly_click","persistent":false,"dynamic":false,"selectize":false,"opacityDim":0.2,"selected":{"opacity":1},"debounce":0},"shinyEvents":["plotly_hover","plotly_click","plotly_selected","plotly_relayout","plotly_brushed","plotly_brushing","plotly_clickannotation","plotly_doubleclick","plotly_deselect","plotly_afterplot"],"base_url":"https://plot.ly"},"evals":[],"jsHooks":[]}</script>
]

---
# Repressing and activating marks

.pull-left[
### mCpG ratio
![:img_scale 80%](img/all_genes_wgbs.png)
]

.pull-right[
### H3K4me3
![:img_scale 80%](img/all_genes_h3k4.png)
]

---
class: inverse, center

# Too many plots?

.center[
![:img_scale 75%](img/explosion.png)
]

---
# PEREpigenomics

*P*rofile *E*xplorer of *R*oadmap *Epigenomic* data
[www.perepigenomics.roslin.ed.ac.uk](http://www.perepigenomics.roslin.ed.ac.uk/)

.center[
![:img_scale 50%](img/perepigenomics.png)
]

---
# Summary of results

.pull-left[
<table class="table table-striped" style="font-size: 14px; width: auto !important; margin-left: auto; margin-right: auto;">
 <thead>
 <tr>
 <th style="text-align:left;"> mark </th>
 <th style="text-align:left;"> cell type by cell type </th>
 <th style="text-align:left;"> gene by gene </th>
 <th style="text-align:left;"> center on TSS </th>
 </tr>
 </thead>
<tbody>
 <tr>
 <td style="text-align:left;"> WGBS </td>
 <td style="text-align:left;"> negative </td>
 <td style="text-align:left;"> negative </td>
 <td style="text-align:left;"> </td>
 </tr>
 <tr>
 <td style="text-align:left;"> DNAse </td>
 <td style="text-align:left;"> positive </td>
 <td style="text-align:left;"> positive </td>
 <td style="text-align:left;"> </td>
 </tr>
 <tr>
 <td style="text-align:left;"> H2A.Z </td>
 <td style="text-align:left;"> positive </td>
 <td style="text-align:left;"> balanced </td>
 <td style="text-align:left;"> </td>
 </tr>
 <tr>
 <td style="text-align:left;"> H3K4me1 </td>
 <td style="text-align:left;"> positive </td>
 <td style="text-align:left;"> positive </td>
 <td style="text-align:left;"> </td>
 </tr>
 <tr>
 <td style="text-align:left;"> H3K4me2 </td>
 <td style="text-align:left;"> positive </td>
 <td style="text-align:left;"> positive </td>
 <td style="text-align:left;"> </td>
 </tr>
 <tr>
 <td style="text-align:left;"> H3K4me3 </td>
 <td style="text-align:left;"> positive </td>
 <td style="text-align:left;"> positive </td>
 <td style="text-align:left;"> </td>
 </tr>
 <tr>
 <td style="text-align:left;"> H3K9me3 </td>
 <td style="text-align:left;"> unclear </td>
 <td style="text-align:left;"> unclear </td>
 <td style="text-align:left;"> no </td>
 </tr>
 <tr>
 <td style="text-align:left;"> H3K23me2 </td>
 <td style="text-align:left;"> positive </td>
 <td style="text-align:left;"> NA </td>
 <td style="text-align:left;"> </td>
 </tr>
 <tr>
 <td style="text-align:left;"> H3K27me3 </td>
 <td style="text-align:left;"> negative – variable </td>
 <td style="text-align:left;"> negative </td>
 <td style="text-align:left;"> </td>
 </tr>
 <tr>
 <td style="text-align:left;"> H3K36me3 </td>
 <td style="text-align:left;"> positive </td>
 <td style="text-align:left;"> positive </td>
 <td style="text-align:left;"> no </td>
 </tr>
 <tr>
 <td style="text-align:left;"> H3K79me1 </td>
 <td style="text-align:left;"> positive </td>
 <td style="text-align:left;"> positive </td>
 <td style="text-align:left;"> no </td>
 </tr>
 <tr>
 <td style="text-align:left;"> H3K79me2 </td>
 <td style="text-align:left;"> positive </td>
 <td style="text-align:left;"> balanced </td>
 <td style="text-align:left;"> no </td>
 </tr>
</tbody>
</table>
]

.pull-right[
<table class="table table-striped" style="font-size: 14px; width: auto !important; margin-left: auto; margin-right: auto;">
 <thead>
 <tr>
 <th style="text-align:left;"> mark </th>
 <th style="text-align:left;"> cell type by cell type </th>
 <th style="text-align:left;"> gene by gene </th>
 <th style="text-align:left;"> center on TSS </th>
 </tr>
 </thead>
<tbody>
 <tr>
 <td style="text-align:left;"> H2AK5ac </td>
 <td style="text-align:left;"> positive </td>
 <td style="text-align:left;"> positive </td>
 <td style="text-align:left;"> </td>
 </tr>
 <tr>
 <td style="text-align:left;"> H2BK120ac </td>
 <td style="text-align:left;"> positive </td>
 <td style="text-align:left;"> positive </td>
 <td style="text-align:left;"> </td>
 </tr>
 <tr>
 <td style="text-align:left;"> H2BK12ac </td>
 <td style="text-align:left;"> positive </td>
 <td style="text-align:left;"> positive </td>
 <td style="text-align:left;"> </td>
 </tr>
 <tr>
 <td style="text-align:left;"> H2BK15ac </td>
 <td style="text-align:left;"> positive </td>
 <td style="text-align:left;"> balanced </td>
 <td style="text-align:left;"> </td>
 </tr>
 <tr>
 <td style="text-align:left;"> H2BK20ac </td>
 <td style="text-align:left;"> neutral </td>
 <td style="text-align:left;"> NA </td>
 <td style="text-align:left;"> </td>
 </tr>
 <tr>
 <td style="text-align:left;"> H2BK5ac </td>
 <td style="text-align:left;"> positive </td>
 <td style="text-align:left;"> positive </td>
 <td style="text-align:left;"> </td>
 </tr>
 <tr>
 <td style="text-align:left;"> H3K4ac </td>
 <td style="text-align:left;"> positive </td>
 <td style="text-align:left;"> positive </td>
 <td style="text-align:left;"> </td>
 </tr>
 <tr>
 <td style="text-align:left;"> H3K9ac </td>
 <td style="text-align:left;"> positive </td>
 <td style="text-align:left;"> positive </td>
 <td style="text-align:left;"> </td>
 </tr>
 <tr>
 <td style="text-align:left;"> H3K14ac </td>
 <td style="text-align:left;"> positive </td>
 <td style="text-align:left;"> positive </td>
 <td style="text-align:left;"> </td>
 </tr>
 <tr>
 <td style="text-align:left;"> H3K18ac </td>
 <td style="text-align:left;"> positive </td>
 <td style="text-align:left;"> positive </td>
 <td style="text-align:left;"> </td>
 </tr>
 <tr>
 <td style="text-align:left;"> H3K23ac </td>
 <td style="text-align:left;"> positive </td>
 <td style="text-align:left;"> positive </td>
 <td style="text-align:left;"> </td>
 </tr>
 <tr>
 <td style="text-align:left;"> H3K27ac </td>
 <td style="text-align:left;"> positive </td>
 <td style="text-align:left;"> positive </td>
 <td style="text-align:left;"> </td>
 </tr>
 <tr>
 <td style="text-align:left;"> H3K56ac </td>
 <td style="text-align:left;"> positive </td>
 <td style="text-align:left;"> NA </td>
 <td style="text-align:left;"> </td>
 </tr>
 <tr>
 <td style="text-align:left;"> H4K8ac </td>
 <td style="text-align:left;"> positive </td>
 <td style="text-align:left;"> positive </td>
 <td style="text-align:left;"> </td>
 </tr>
 <tr>
 <td style="text-align:left;"> H4K12ac </td>
 <td style="text-align:left;"> positive </td>
 <td style="text-align:left;"> NA </td>
 <td style="text-align:left;"> </td>
 </tr>
 <tr>
 <td style="text-align:left;"> H4K91ac </td>
 <td style="text-align:left;"> positive </td>
 <td style="text-align:left;"> positive </td>
 <td style="text-align:left;"> </td>
 </tr>
</tbody>
</table>

]

---
class: font180

## Conclusions

PEREpigenomics offers interesting visualisations of epigenetic data gathered by
Roadmap Epigenomics.

## Perspectives

- update with new annotation data (ongoing)
- preprint & source code available soon
- develop similar approach for [FAANG](http://data.faang.org/home) (Functional Annotation of the Animal Genomes) data

---
